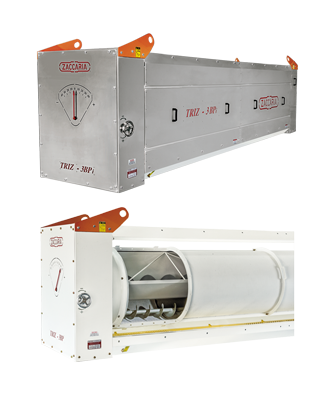

The Length Grader, model TRIZ-3/BP has the function to remove impurities with different size from the seeds. The equipment offers high efficiency even in cases when the impurities have similar sizes to the healthy grains, such as Liana, Turf and others. It works with rotary cylinders and indents which can be offered in different sizes, according to each seed and the impurity to be removed. The bipartite system allows the equipment to work with on several cultivars, only by changing the cylinder size. The equipment is available either in carbon steel and stainless steel.

Modular System and Bipartite cylinder.


Base Structure (optional).


-Capacity under request


-Power for cylinder: 3hp / 2,2 kW / IV poles
